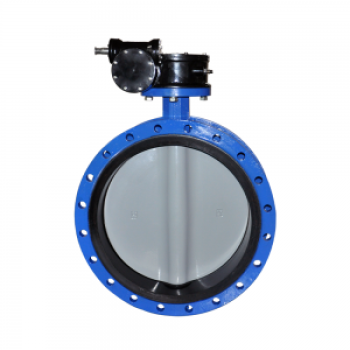

The company’s worm gear drive flange valve is widely used in the nominal pressure: ≤ PN1.6MPa，application temperature:≤200℃ oil
Pressure and temperature
DN(mm) Nominal diameter | DN50~1000 |
PN(MPa) Nominal pressure | 1.0~1.6 |
℃ Working temperature | -23~+121 |
Suitable mediums | Fresh water, sewage, sea water, gas etc. |
Main material list
Part name | Material name |
Valve body | Cast iron, ductile iron,stainless steel |
Valve disc | Ductile iron, Stainless steel, aluminium alloy |
Valve stem | Carbon steel, stainless steel |
Valve seat | Rubber |
Seal | O type rang |
Executive Standard:
| Design Standard | EN 593 , MSS SP67 API 609 BS5155 |
| Inspection & Test | API 598 ISO 5208 EN 12266 |
| End Standard | ANSI B16.1 CL. 125LB & B16.5 CL. 150LBAS 2129 Table D & E BS 10 Table D & EDIN 2501 PN6, PN10 & PN16EN 1092 PN6, PN10 & PN16ISO 2531 PN6, PN10 & PN16ISO 7005 PN6, PN10 & PN16KS B 1511 / JIS B 2210 5K & 10KMSS SP44 CL. 150LB AWWAC207SABS 1123 Table 1000/3 & Table 1600/3 |
| Face to Face | ISO 5752 , EN 558 , MSS SP67 and API 609 DIN3202 |
| Top Flange | ISO 5211 |
Main dimensions
| DN | L | L1 | D | D1 | H | H1 | b | n-ød |
| mm | inch | PN1.0MPa | PN1.6MPa | PN1.0MPa | PN1.6MPa |
| 50 | 2" | 108 | 180 | 125 | 125 | 150 | 326 | 83 | 20 | 4-ø18 | 4-ø18 |
| 65 | 21/2" | 112 | 180 | 145 | 145 | 165 | 344 | 93 | 20 | 4-ø18 | 4-ø18 |
| 80 | 3" | 114 | 180 | 160 | 160 | 200 | 363 | 100 | 22 | 4-ø18 | 8-ø18 |
| 100 | 4" | 127 | 180 | 180 | 180 | 220 | 396 | 114 | 22 | 8-ø18 | 8-ø18 |
| 125 | 5" | 140 | 180 | 210 | 210 | 250 | 421 | 125 | 24 | 8-ø18 | 8-ø18 |
| 150 | 6" | 140 | 180 | 240 | 240 | 280 | 453 | 143 | 24 | 8-ø23 | 8-ø23 |
| 200 | 8" | 152 | 270 | 295 | 295 | 335 | 578 | 170 | 26 | 8-ø23 | 12-ø23 |
| 250 | 10" | 165 | 270 | 350 | 355 | 405 | 638 | 198 | 26 | 12-ø23 | 12-ø28 |
| 300 | 12" | 178 | 380 | 400 | 410 | 455 | 731 | 223 | 32 | 12-ø23 | 12-ø28 |
| 350 | 14" | 190 | 380 | 460 | 470 | 525 | 783 | 270 | 36 | 16-ø23 | 16-ø28 |
| 400 | 16" | 216 | 450 | 515 | 525 | 580 | 888 | 300 | 38 | 16-ø28 | 16-ø31 |
| 450 | 18" | 222 | 480 | 565 | 585 | 640 | 958 | 340 | 40 | 20-ø28 | 20-ø31 |
| 500 | 20" | 229 | 480 | 620 | 650 | 705 | 1005 | 355 | 42 | 20-ø28 | 20-ø34 |
| 600 | 24" | 267 | 480 | 725 | 770 | 825 | 1128 | 410 | 48 | 20-ø30 | 20-ø36 |
| 700 | 28" | 292 | 640 | 840 | 840 | 920 | 1476 | 478 | 53 | 24-ø30 | 24-ø36 |
| 800 | 32" | 318 | 640 | 950 | 950 | 1020 | 1533 | 525 | 58 | 24-ø33 | 24-ø39 |
| 900 | 36" | 330 | 750 | 1050 | 1050 | 1120 | 1655 | 585 | 65 | 28-ø33 | 28-ø39 |
| 1000 | 40" | 410 | 850 | 1160 | 1170 | 1340 | 1765 | 640 | 76 | 28-ø36 | 28-ø42 |
| 1200 | 48" | 470 | 850 | 1380 | 1390 | 1560 | 1995 | 755 | 85 | 32-ø39 | 32-ø48 |
| 1400 | 56" | 530 | 1000 | 1590 | 1590 | 1760 | 2310 | 910 | 103 | 36-ø42 | 36-ø48 |
| 1600 | 64" | 600 | 1000 | 1820 | 1820 | 1970 | 2595 | 1030 | 123 | 40-ø48 | 40-ø56 |
| 1800 | 72" | 697 | 1100 | 2020 | 2020 | 2180 | 2810 | 1140 | 135 | 44-ø48 | 44-ø56 |
| 2000 | 80" | 760 | 1100 | 2230 | 2230 | 2345 | 3100 | 1250 | 145 | 48-ø48 | 48-ø56 |
